Setup: Manga on PC

MangaOCR is a tool used to scan a Japanese text and return it to your clipboard which you can scan in Yomitan
(Recommended) Mokuro Manga is a setup that first processes the manga to be able to hover the words and scan them using Yomitan

MangaOCR

Requirements

Install CDisplayEx
- Manga Reader for PC
Yomitan On PC and ShareX already set-up

Setup: MangaOCR

Download python (3.10.xx ONLY)
- (Scroll down) Then choose Windows/mac INSTALLER (64-bit) and install
- Check Add Python to PATH
Open command prompt by winkey/search > cmd
Type pip3 install mokuro
- Then just let it download/install for a few mins until it's done and you can type again
- If pip3 is not recognized... then:
  - Uninstall Python(step 1) > Restart the pc > reinstall Python (repeat if it didn't work; I know its dumb)
Hotkey Settings(ShareX) > OCR (manga_ocr) > Click the COG icon > override screenshot folder > change the path to a specified OCR folder of your choice
In command prompt type:
- manga_ocr "\path\to\sharex\screenshot\folder"
  - Copy the path that YOU specified in step 4 to start the program, then just minimize the window
- Typing manga_ocr by itself without a path also works; it will OCR(scan) from everywhere
- If you want a shortcut program see: Info 1
Capture anything using Shift + Alt + Q or whatever you set in OCR (manga_ocr) hotkey in (ShareX)
- Make sure Yomitan Search Page is opened
- If you want to scan using mouse button, see Info 2
You can now start reading using MangaOCR

Video How-to (click here)

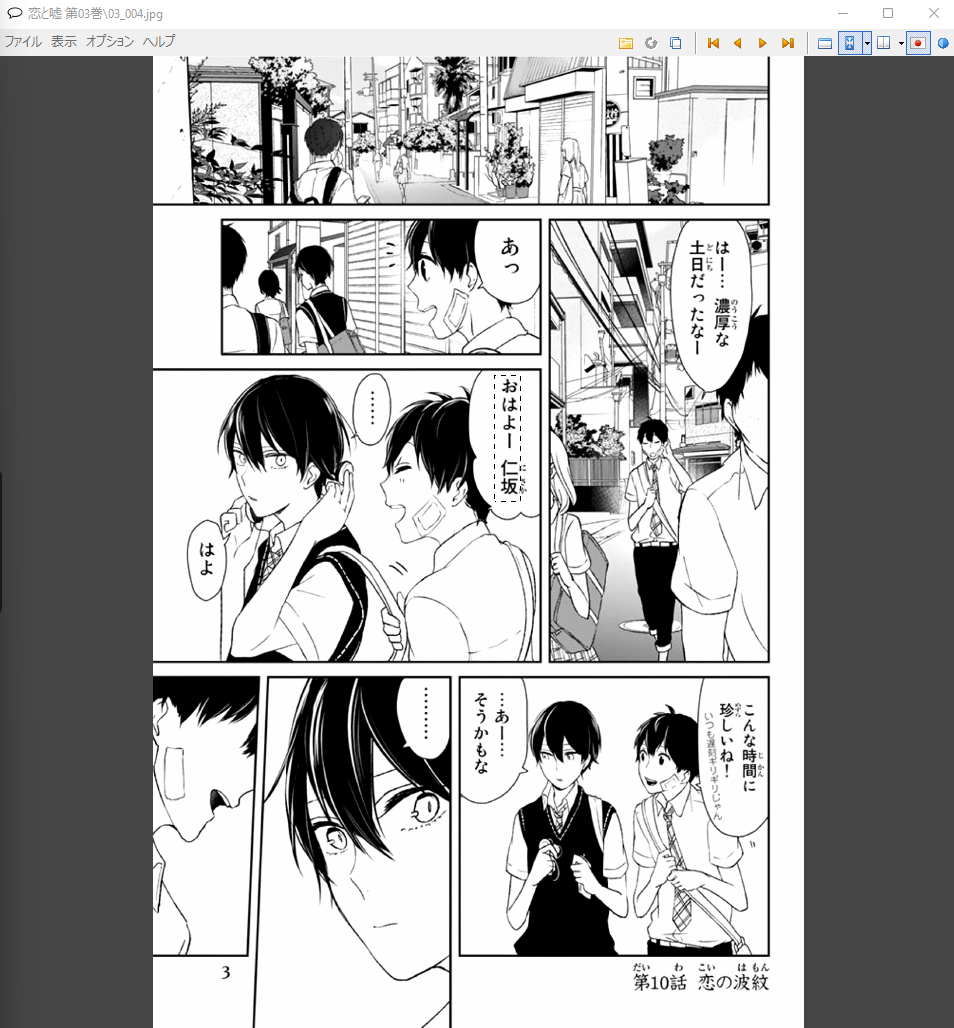

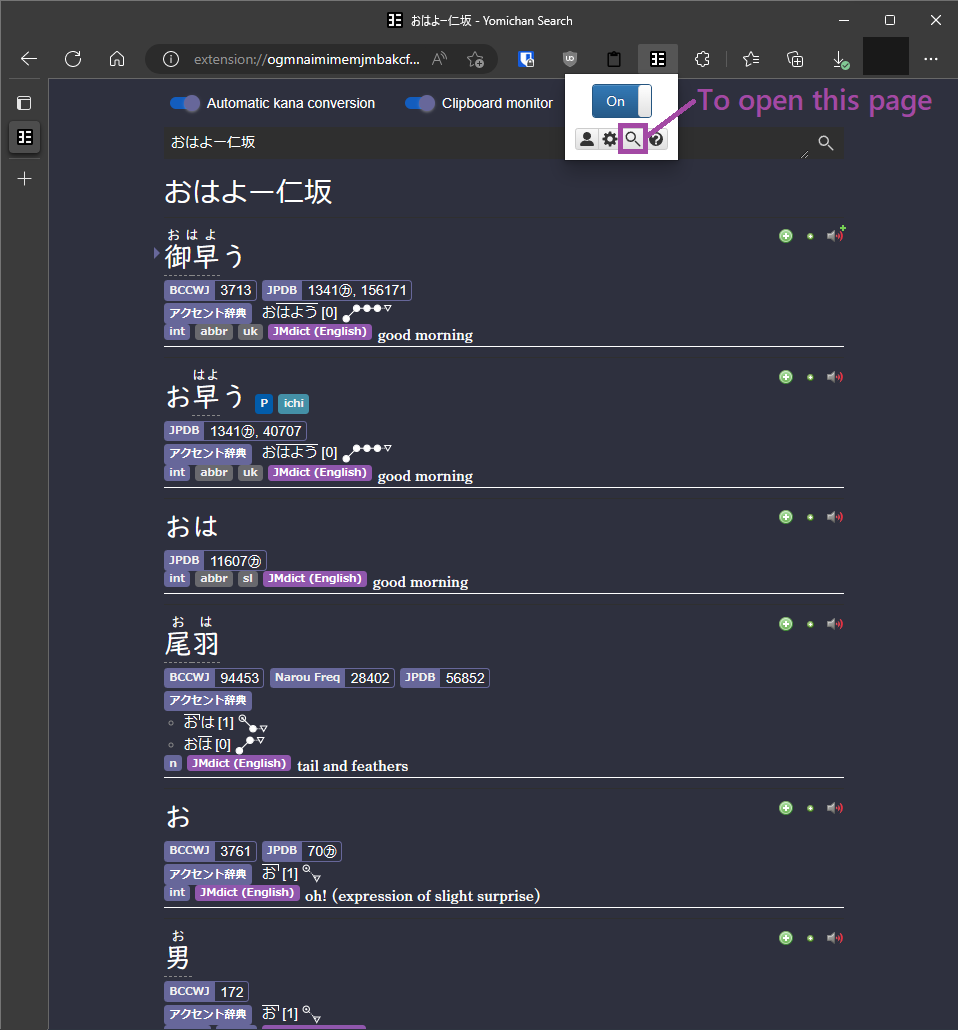

Yomitan Search PageCDisplayEx Manga

You might also want to check Mokuro Manga

Setup: Mokuro Manga

Choose between 2 options:

Online Processing Method: ~processes 200 manga pages in ~15mins; straightforward guide
Local Processing Method: If you have a strong PC this is better; you are also a know-how

Android Mining

To be able to mine in Android check: Setup: Manga On Android

Online Processing Method

Follow this Setup Guide
Download the processed Manga folder and see Reading Processed Manga

Local Processing Method

Download python (3.10.xx ONLY)
- (Scroll down) Then choose Windows/mac INSTALLER (64-bit) and install
- Check Add Python to PATH
Download and Install Git > 64-bit setup
Open command prompt by winkey/search > cmd
Type pip3 install mokuro
- Then just let it download/install for a few mins until it's done and you can type again
- If pip3 is not recognized... then:
  - Uninstall Python(step 1) > Restart the pc > reinstall Python (repeat if it didn't work; I know its dumb)
(Optional) Use GPU CUDA
- Check if your GPU is CUDA compatible
- Download CUDA Toolkit for your operating system and version

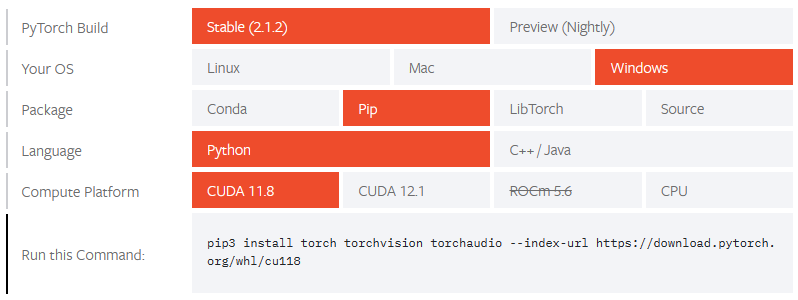

- Type pip3 install torch torchvision --index-url https://download.pytorch.org/whl/cu126 in cmd (or find the latest from here)
- To check if it's existing, type python > import torch > torch.cuda.is_available()
- If it redirects you to Microsoft Store:
  - Open Windows Powershell > paste input Remove-Item $env:USERPROFILE\AppData\Local\Microsoft\WindowsApps\python*.exe > then enter
- If problem occurs reinstall pytorch by pip uninstall torch in cmd then redo the step above, if it still failed, go check here for other ways to verify
Two options to process, go to cmd then:
- All Manga volumes:
  - Paste: mokuro --parent_dir F:\Manga\Saenai
    - Replace full directory, Saenai with your manga name
    - Your vol1, 2, 3, etc. should be inside Saenai folder in ascending uniform named order
- Specific Manga volume:
  - Paste: mokuro F:\Manga\Saenai\Vol3
    - Replace full directory, Saenai with your manga name and volume #
Folder Structure (click here)
```
├── Manga Folder
│   ├── _ocr folder
│   ├── .html
│   ├── .mokuro
│   └── .zip
│    │    └── manga img file (.jpg/.png)
```
See Reading Processed Manga

Reading Processed Manga

Skip Step 1 if you're using my setup

In your Anki, Ctrl + Shift + A or Tools > Add-ons

Select AnkiConnect > Config
Under webCorsOriginList paste https://reader.mokuro.app or copy config below:

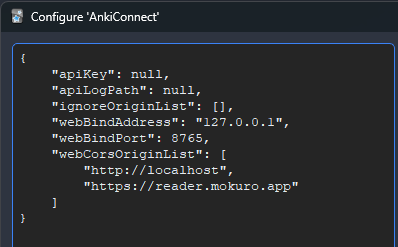

AnkiConnect Config (click here)

{
    "apiKey": null,
    "apiLogPath": null,
    "ignoreOriginList": [],
    "webBindAddress": "127.0.0.1",
    "webBindPort": 8765,
    "webCorsOriginList": [
        "http://localhost",
        "https://reader.mokuro.app"
        ]
}

AnkiConnect PC

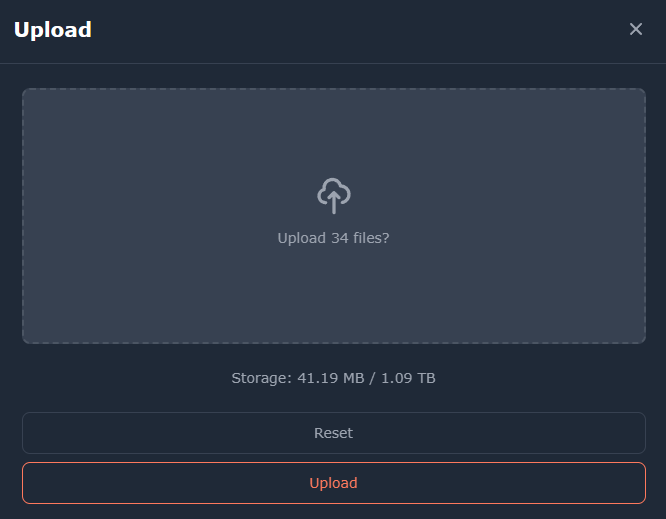

Go to Mokuro Reader > Upload Icon (top right) > choose directory
- Select the Manga folder that contains the manga, mokuro'd files and .mokuro
- Click Upload
In the top right, go to settings > Profile > Select a File > Mokuro Profile > Import Profiles > Select PC Profle
- Alternatively you can make your own profile just make sure to set-up everything on Anki Connect portion
To be able to mine, simply add the word using Yomitan
- To screenshot, make sure to double click/tap inside the text border (its invisible by default)
You should now be able to mine and screenshot in your Manga with ease

_ocr folder

ocr files is optional but recommended to keep

You can now mine Manga on PC, see how it's done in Android!

Proceed to Manga on Android Setup

If you have any problems check FAQs

Extra Info and Tips

Info 1: MangaOCR Shortcut Program

MangaOCR Shortcut Program (click here)

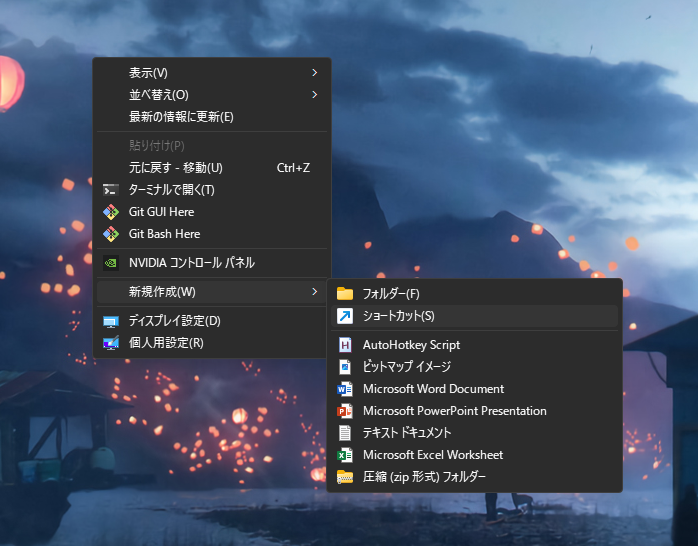

Right click in an empty space in your Desktop > New > Shortcut
Type the location of the item as:
- Default: C:\Windows\System32\cmd.exe /k manga_ocr
- OCR only from specific folder: C:\Windows\System32\cmd.exe /k manga_ocr "\path\to\the\screenshot\folder"
  - For example: C:\Windows\System32\cmd.exe /k manga_ocr "F:\Pictures\OCR Picture"
  - Next then choose your name and done

Info 2: Scan using Mouse Button

Scan using Mouse Button (click here)

Download and install AutoHotkey
Download my Hotkey then run it
Use Forward Button to use it
- This is assuming the OCR (manga_ocr) hotkey in ShareX is unchanged from Shift + Alt + Q
- You can edit the hotkey by editing the script if you like
